Fold to Flight: An Educators' Hands-On Pathway from Paper Planes to Advanced Drones

Objective:

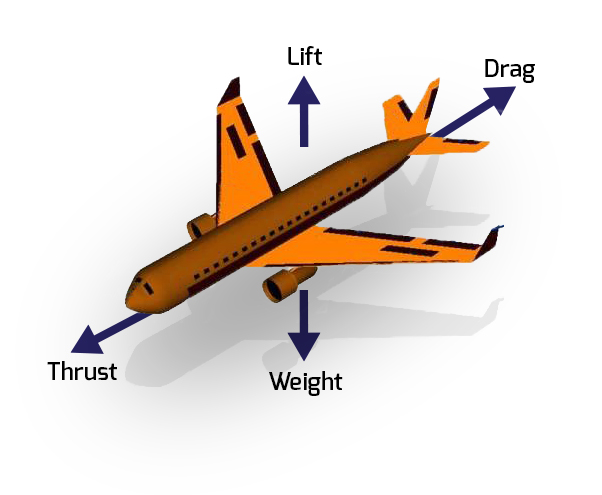

Students will learn about the four fundamental forces that affect flight: lift, weight, thrust, and drag.


Concept Introduction:

• Lift is the upward force that opposes gravity. It is created by the movement of air over and under the wings.

  • Demonstration: Explain that lift keeps the plane from falling. Demonstrate by holding a paper airplane flat and then tilting the wings slightly to show how changes in shape affect how it rises or glides. Blowing gently over a wing can also illustrate moving air creating lift.

• Weight (Gravity) is the downward force caused by Earth's gravity pulling the aircraft toward the ground.

  • Demonstration: Explain that everything with mass experiences gravity. Drop a small object alongside a paper airplane to show that both are pulled down, while the plane flies because of other forces acting on it.

• Thrust is the forward force that propels the aircraft. It is produced by engines, propellers, or a simple hand launch.

  • Demonstration: Explain that thrust moves the plane through the air. Have students throw a paper airplane gently and then strongly to observe how thrust affects speed and distance.

• Drag is the backward force (air resistance) that opposes thrust and slows the aircraft down.

  • Demonstration: Explain that drag is air pushing against the plane. Compare a tightly folded paper airplane to a loosely folded one or add a paperclip to the nose to show how design changes increase drag and affect flight.

Key Learning Points:

• Students will understand how lift, weight, thrust, and drag interact to make flight possible.

• Students will begin to observe these forces in action during paper airplane and glider activities.

• Interactive demonstration and experimentation help students connect each force to observable effects in real time.

Objective:

Students will construct paper airplanes, test their flight performance, make adjustments, and engage in a friendly distance and accuracy challenge to explore the principles of flight.

Classroom Activity:

1. Construction: Students fold their own paper airplanes, experimenting with different designs. Encourage attention to symmetry, wing shape, and folds.

2. Testing and Adjusting: Students fly their planes, observe flight patterns, and make adjustments to improve performance. Discuss how changes affect lift, thrust, drag, and stability.

3. Class Contests:

1. Distance Challenge – See how far students' airplanes can fly.

2. Accuracy Challenge – Aim for a target and test the airplanes' control.

Key Learning Points:

• How basic design choices affect flight.

• The four forces of flight (lift, weight, thrust, drag) in action.

• The value of testing, observing, and iterating to improve results.

• Friendly competition as a tool for learning and engagement.


Objective:

Students will learn what a payload is, explore real-world examples, and test how adding payloads affects their aircraft’s performance.

Concept Introduction:

A payload is anything an aircraft carries in addition to what it needs to fly.

• On real airplanes, payloads can be passengers, luggage, or packages.

• On drones, payloads might be cameras, sensors, or small delivery items.

• On model airplanes, payloads can be as simple as paperclips, pennies, or small blocks.


Classroom Activity:

1. Introducing Payloads: Begin by explaining that a payload is anything extra an aircraft carries, such as people, packages, or tools. For this activity, paperclips will serve as the payload.

2. Adding Payloads: Students attach one paperclip to their paper airplane and test-fly it. Encourage them to observe changes in distance, stability, or flight path.

3. Increasing Payloads: Have students gradually add more paperclips, testing the plane after each addition. Guide them to notice how extra weight affects performance.

4. Adjusting for Payloads: Challenge students to adapt their throwing technique—changing angle, force, or grip—to see if they can improve flight despite the added payload.

5. Reflection: Facilitate a short discussion where students share observations about how payload affects flight. Connect their experiences to real-world examples like airliners carrying passengers or drones carrying cameras.

Key Learning Points:

• A payload is any extra item carried by an aircraft.

• Even small changes in weight affect how an aircraft flies.

• Pilots and engineers must often adjust how they fly or design their aircraft to account for different payloads.

Objective:

Students will explore how adding payloads (extra weight) affects the distance and accuracy of paper airplanes.

Classroom Activity:

Students will participate in a payload-focused competition with three parts:

1. Distance Challenge: See how far the students' airplane can fly when equipped with payloads.

2. Accuracy Challenge: Aim for a target and test control while carrying payloads.

3. Weight Challenge: Experiment to see how many paperclips students can add to their paper airplanes.

Key Learning Points:

• Payload is anything an aircraft carries beyond what it needs to fly.

• Added weight changes how far and how straight an airplane can travel.

• Pilots and engineers adjust for payloads in real-world aviation, just as students will adjust their throws.

Objective:
Students will review the four forces of flight and be introduced to the concept of free flight models.

Classroom Activity:

• Review: Teacher briefly reviews lift, weight, thrust, and drag.

• Introduction: Explain free flight: once an airplane leaves your hand, it flies on its own without controls.

• Informal Assessment: Students identify which forces they see acting when testing paper airplanes.

• Preparation: If students will cut out their own FPG-9 templates in the next lesson, distribute or pre-cut materials.

Key Learning Points:

• The four forces of flight always act on an airplane.

• A paper airplane or glider is a type of free flight model.

• Free flight means there’s no control once launched.

Objective:
Students will construct, test, and adjust FPG-9 gliders to explore flight performance.

Classroom Activity:

• Construction: Students make FPG-9 gliders.

• Testing: Fly gliders, observe patterns, and test adjustments.

• Adjusting: Make changes using rudders or elevons to improve control and stability.

• Competition: Hold a simple distance and accuracy contest with unmodified gliders.

• Worksheet: Students complete a short worksheet to record flight performance and observations.

Key Learning Points:

• Small design changes affect balance, stability, and flight distance.

• Rudders and elevons change direction and pitch.

• Careful testing and recording observations helps improve flight.


Objective:

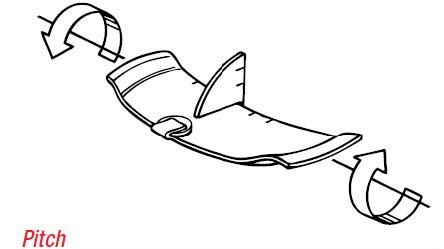

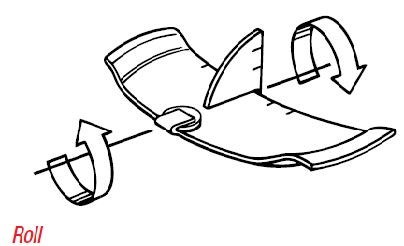

Students will learn about the three axes of flight (yaw, pitch, and roll) and practice using control surfaces to influence them.

Classroom Activity:


• Introduction: Teacher explains yaw (left/right nose movement), pitch (up/down nose movement), and roll (tilting side to side).

• Demonstration: Show how bending elevons or rudders affects each motion.

• Testing: Students fly their gliders and observe changes in yaw, pitch, or roll.

• Adjusting: Students experiment with small changes to control surfaces to practice controlling each axis.

  • These adjustments can be made through the glider's elevators, ailerons, and rudders.

  • Small changes can make a huge difference during this adjustment process, so its important to encourage the students to make small changes one at a time.

• Mini-Challenge: See who can make their glider turn, climb, or bank consistently.


Key Learning Points:

• Yaw is movement left or right, controlled with rudders.

• Pitch is movement up or down, controlled with elevons.

• Roll is tilting side to side, affected by wing surfaces and elevons.

• Small control changes can greatly affect flight path.

Objective:
Students will explore how payloads affect flight performance and practice adjusting design and technique to adapt.

Classroom Activity:

• Adding Payloads: Students attach paperclips to gliders as payloads.

• Testing: Fly payload-equipped gliders, observing changes in flight distance and stability.

• Adjusting: Modify design or throwing style to balance added weight.

• Competition: Distance and accuracy contest with payloads.

• Reflection:

  • Review Discussion – Class discusses what they learned from building, testing, adjusting, and competing.

  • Reflection – Students share how different changes (folds, adjustments, yaw/pitch/roll, payloads) affected their glider flights.

Key Learning Points:

• A payload is anything an aircraft carries in addition to what it needs to fly.

• Added weight affects stability, distance, and lift.

• Engineers adjust design and flight techniques to successfully carry payloads.

Objective:
Students will review the principles of flight and compare earlier models with their upcoming free flight build.

Classroom Activity:

• Review: Go over lift, weight, thrust, and drag with the class.

• Compare: Discuss how their paper airplanes and FPG-9s differ from the upcoming build.

• Connect: Highlight what students already know and what they will explore further with more advanced gliders.

Key Learning Points:

• The four forces of flight act on all aircraft, regardless of size or material.

• Free flight means no external control once the plane is released.

• Comparing different models helps show how design affects performance.


Objective:
Students will build AMA Alpha or Beta gliders under supervision, reviewing free flight concepts as they work.

Classroom Activity:

• Review: Recap what free flight means and how it differs from powered or controlled aircraft.

• Build: Students assemble gliders under teacher supervision.

• Check: Teachers ensure gliders are balanced and constructed correctly before testing.

Key Learning Points:

• Free flight gliders must be carefully balanced to fly properly.

• AMA Alpha/Beta gliders offer a sturdier, more controlled testbed than paper models.

• Construction precision affects stability and flight performance.

Objective:
Students will test their AMA Alpha/Beta gliders, record flight data, and discuss observations before making adjustments.

Classroom Activity:

• Test Flight: Students fly their gliders indoors and measure distances and flight times.

• Observe: Watch carefully for flight patterns, stability issues, and unexpected movements.

• Discuss: Students share observations with the teacher before making adjustments.

• Adjust: Make controlled changes to improve flight.

Key Learning Points:

• Careful observation is the first step in solving flight problems.

• Adjustments should be based on evidence, not guesswork.

• Distance and duration give useful data about flight efficiency.


Objective:
Students will make final adjustments to their gliders and participate in a duration flight challenge.

Classroom Activity:

• Final Adjustments: Students check and fine-tune gliders one last time.

• Duration Flight: Conduct a classroom-wide contest to see whose glider stays in the air longest.

• Reflection: Discuss what techniques or adjustments worked best.

Key Learning Points:

• Small adjustments can make a big difference in performance.

• Duration flights emphasize lift and stability over just distance.

• Repetition is a core part of the engineering and testing process.

Objective:
Students will explore how payloads affect flight, then compete in a final challenge measuring weight carried and flight duration.

Classroom Activity:

• Introduce: Discuss what a payload is and how added weight affects an aircraft.

• Experiment: Students add payloads (e.g., paperclips) to their gliders and test flights.

• Adjust: Modify launch technique or glider setup to adapt to payload weight.

• Final Competition: Students compete to see whose glider can carry the most weight while staying in the air the longest.

Key Learning Points:

• Payloads add weight, which impacts lift, drag, and stability.

• Engineers must balance design and payload capacity.

• Success depends on both design choices and piloting technique.
